“Clip Smarter. Work Faster.”

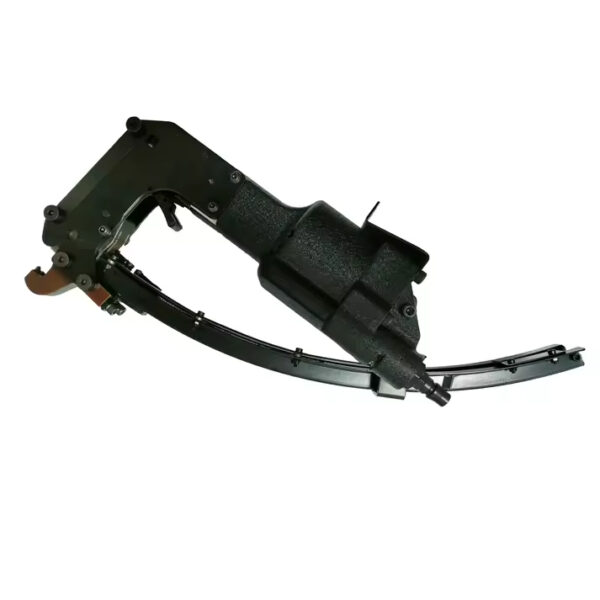

Pneumatic Hog Ring Gun M85/M87/M88 Series

Application:

Use Cases of the M87 Series Pneumatic Hog Ring Gun For Razor Wire Clips

This tool is built for demanding industrial work. Its primary application is in the mattress industry, but it also serves other sectors that require hog ring fastening.

Mattress spring frame assembly

Edge wire and border rod joining

Upholstery and seating fastening

Cage and netting production

Auto interior foam and fabric joining

The M87 clipping gun boosts speed and accuracy in tasks where quick clipping is essential.

Get Quote

Category: Tags: , , , , ,

Description

What Is the M85/M87/M88 Series Clipping Gun Clinch Clips Tool?

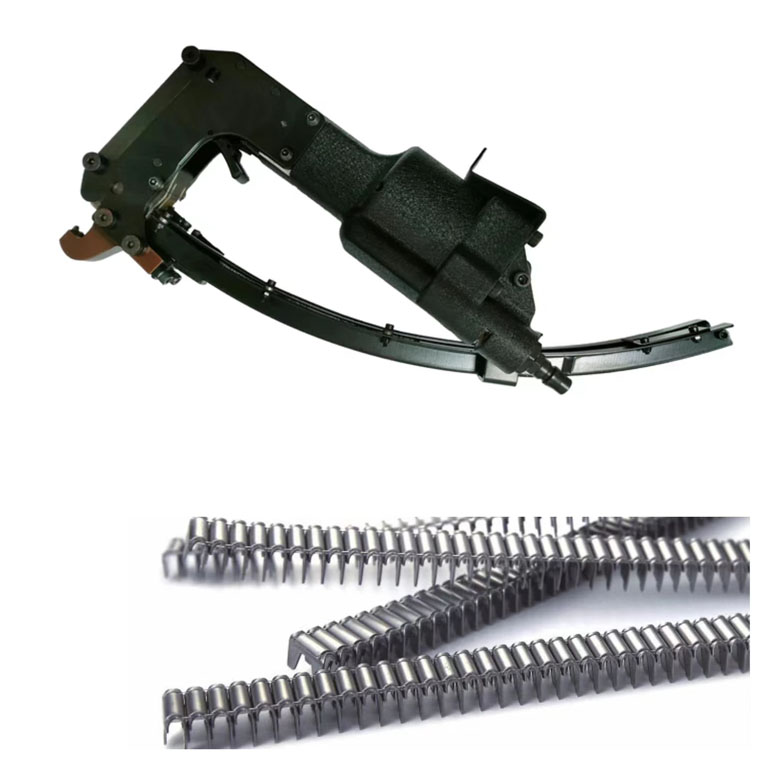

The M85/M87/M88 Series  Clipping Gun is a pneumatic hog ring gun designed to fasten clinch clips quickly and securely. Commonly used in mattress production, it helps workers join spring wires, edge rods, and frame parts using C-shaped rings.

Driven by compressed air, this tool replaces manual fastening, allowing for faster and stronger connections during assembly.

Top Benefits of Using the M85/M87/M88 Series Clipping Gun in Mattress Production

  1. Fast and Reliable Operation
    The gun drives C-rings in seconds, increasing efficiency during long shifts.

  2. Comfortable Grip for Long Use
    Its ergonomic design reduces hand fatigue, making it ideal for continuous work.

  3. Consistent Clip Positioning
    Delivers uniform pressure to fasten clips evenly—important for mattress durability.

  4. Low Maintenance Needs
    Simple parts and a rugged body allow long service with minimal downtime.

  5. Wide Compatibility with Clips
    Compatible with standard M-type or C-type clinch clips used in mattress frames.

Use Cases for Pneumatic Clipping Gun

The pneumatic hog ring gun is widely used in:

  • Spring Units Assembly: Quickly ties coils to border rods.

  • Mattress Frame Production Lines: Secures all structural components.

  • Furniture Cushion Attachment: Fastens fabric to seat frames.

  • Animal Cage and Wire Mesh Assembly: Connects mesh panels.

  • Vehicle Seat Padding: Joins foam and upholstery layers cleanly.

Wherever wire, foam, or fabric need to be clipped, the gets the job done.

Technical Features of the Clipping Gun

  • Power Source: Compressed air (recommended pressure 6–8 bar)

  • Clip Type: M-type or C-ring clinch clips

  • Weight: Lightweight aluminum body for easy handling

  • Trigger Type: Manual, quick response

  • Clip Loading: Fast-feed design for fewer interruptions

  • Air Inlet Size: Standard 1/4″ connection

The balance of speed and control makes this tool ideal for industrial assembly lines.

How to Choose the Right Pneumatic Hog Ring Gun

When selecting a hog ring gun for mattress or upholstery tasks, check:

Factor Key Consideration
Clip Type Compatibility Does it fit the clips your process uses?
Production Speed Can it handle your daily clip volume?
Ergonomics Will the grip and weight suit long work hours?
Air Pressure Range Does your compressor match the pressure needed?
Maintenance Ease Are spare parts and repairs accessible?

A well-matched tool will improve productivity and reduce rework.

Troubleshooting Common Clipping Gun Issues

  • Clip Misfires: Check air pressure and clip alignment.

  • Stuck Trigger: Clean and lubricate internal mechanism.

  • Clips Don’t Close Fully: Adjust air flow or replace worn parts.

  • Excessive Air Leakage: Check for loose fittings or damaged seals.

Keeping the gun clean and regularly checking parts will avoid most problems.

Maintenance Tips to Extend Service Life

  • Lubricate daily with pneumatic tool oil.

  • Inspect O-rings and seals weekly for air leaks.

  • Empty the clip chamber when storing.

  • Avoid overloading the clip tray.

  • Store in a dry location to prevent internal rusting.

Regular care means fewer breakdowns and consistent performance.
